DIALux - Indoor Lighting Calculations Menu Options

Indoor Lighting Calculations Menu Options

1-Edit Room

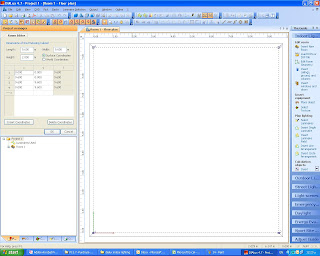

a- Press the Icon "Insert New Room" and Room 1- Floor Plan will open And you can use the Room Editor as explained before.



b- Press the Icon "Load DWG or DXF File" and a window of ' Welcome to the Cad Drawing Import" will open


c- Press "Next" and Then "File selection" Window will open
Press Browse and select file you need to Import



d- Press "Next" and Then "Specify Measurement Units" Window will open



e- Press "Next" and Then "Defining the Planning Origin" Window will open

f- Press "Next" and Then "Finishing the Wizard for Importing a CAD drawing" Window will open and then press "Finish"

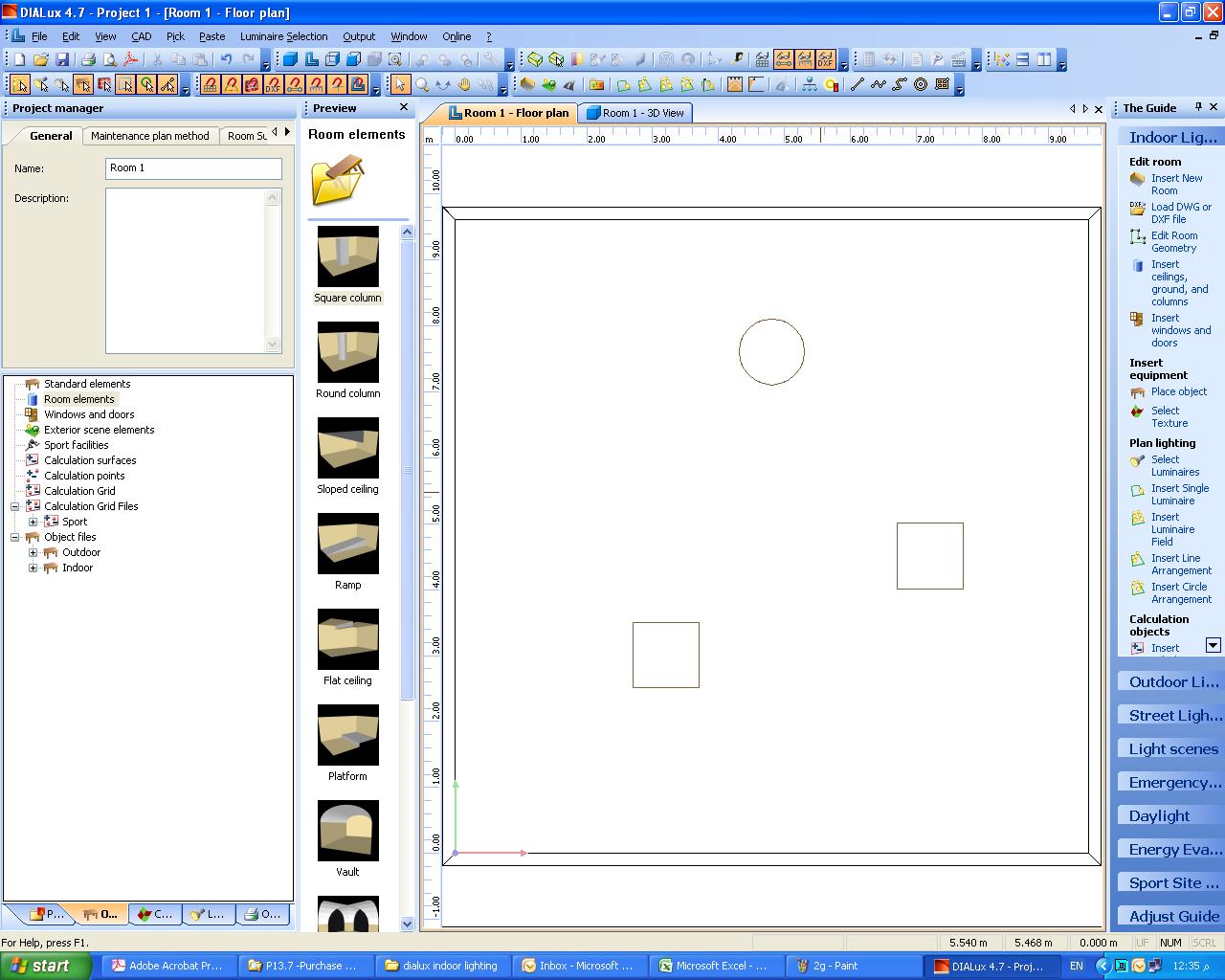

g- Press the Icon "Insert Ceiling, Ground and Columns" and the Room elements Menu will appear


h- Drag the Room element that you want to the room – Floor Plan

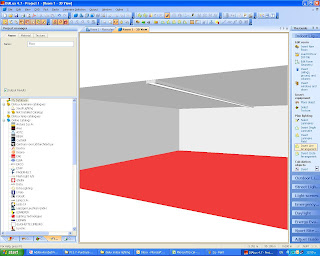

i- Press the Room 1- 3D View Menu to see a 3 dimension view for what you drag into the room floor plan

 j- Press the Icon "Insert Windows and Doors" and the windows and doors Menu will appear


k- Drag the windows and doors element that you want to the room – Floor Plan

L- Press the Room 1- 3D View Menu to see a 3 dimension view for what you drag into the room floor plan



 2- Insert Equipment Options
a- Press the Icon "Insert Equipment" and the Standard Equipment Menu will appear
Drag the Standard Equipment element that you want to the room – Floor Plan
Press the Room 1- 3D View Menu to see a 3 dimension view for what you drag into the room floor plan



b- Press the Icon "Select Texture" and the Textures Menu will appear
Drag the Texture element that you want to the room – Floor Plan
Press the Room 1- 3D View Menu to see a 3 dimension view for what you drag into the room floor plan


3-Plan Lighting

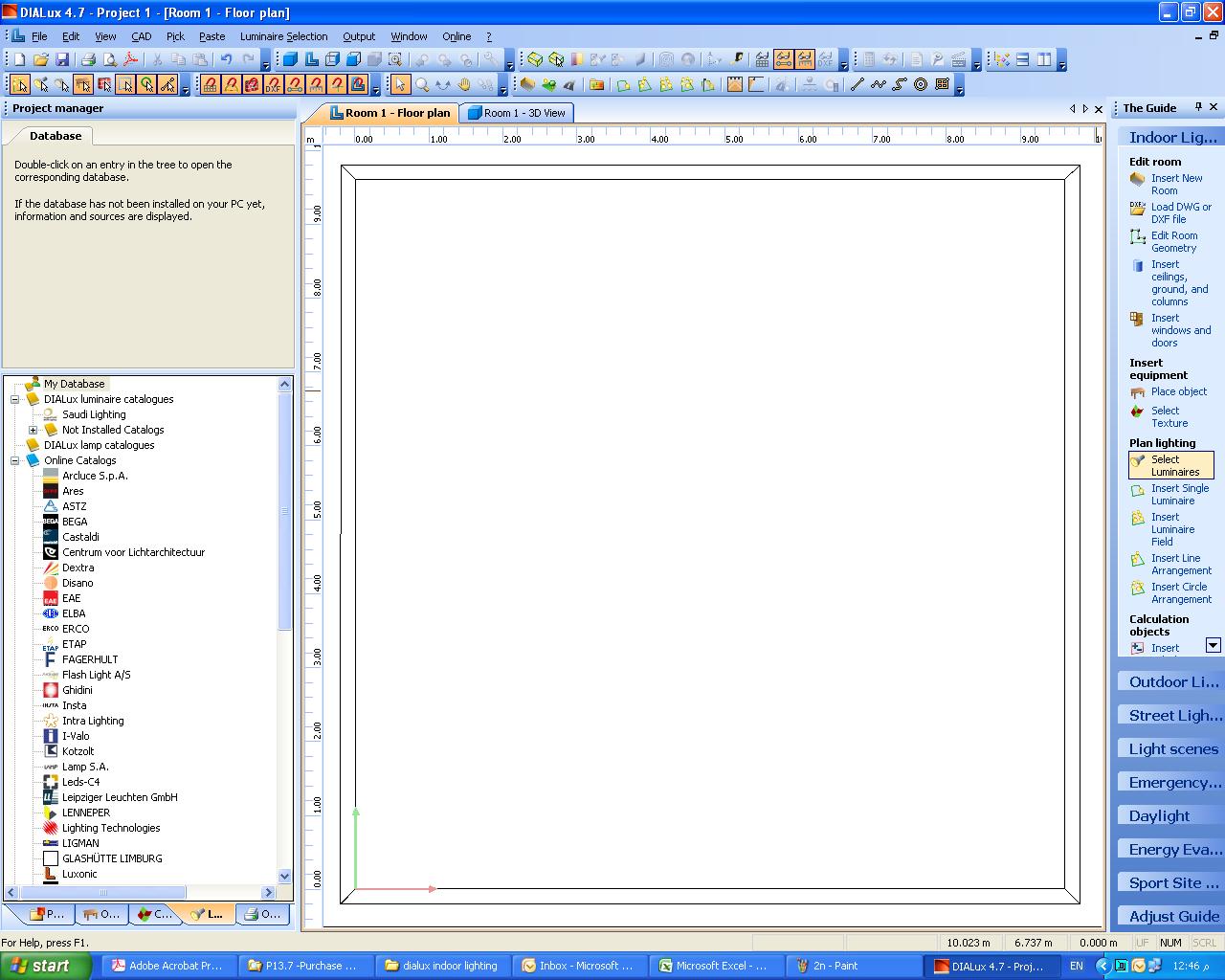

a- Press the Icon "Select Luminaries" and the Database Menu will be appear to select the Luminaries you want


b- the Icon "Insert Single Luminaire" and a single Luminaire from the selected type will be inserted in the Room floor plan

 c- Press the Icon "Insert Luminare Field" and Luminaries from the selected type will be inserted in the Room floor plan based on the entered design data before


d- Press the Icon "Insert Line Arrangement" and a Line of Luminaries from the selected type will be inserted in the Room floor plan based on the entered design data before

e- Press the Icon "Insert Circle Arrangement" and a Line of Luminaries from the selected type will be inserted in the Room floor plan based on the entered design data before

4- Calculation Objects

a- Press the Icon "Insert Calculation Surfaces" the Calculation Surfaces Menu (on which you can calculate for a required Lux level "will appear
Drag the Calculation Surface that you want to the room – Floor Plan
Press the Room 1- 3D View Menu to see a 3 dimension view for what you drag into the room floor plan
And I will explain this point in detail latter


b- Press the Icon "Insert Calculation Points" the Calculation Points Menu will appear
Drag the Calculation point that you want to the room – Floor Plan
Press the Room 1- 3D View Menu to see a 3 dimension view for what you drag into the room floor plan
And I will explain this point in detail latter
